| Brand Name : | Halnn |
| Model Number : | CNMN120412 |
| Certification : | ISO9001 |
| Price : | Negotiable ( About 10-30 Usd/ Piece) |
| Payment Terms : | T/T, Western Union, MoneyGram,Paypal |
| Supply Ability : | 100000 pcs per month |
| Delivery Time : | 3~15 working days |
Processing Slurry pump CBN Insert Continuous Hard Part Turning High Chromium Cast iron
1. Halnn Tools Processing Slurry pump CBN Insert Continuous Hard Part Turning High Chromium Cast iron
With carbide insert machine industry pump, the insert will wear rapidly, leading to change insert frequently, which will affect the production efficiency, so carbide insert is not the right cutting tools for machining pump. Ceramic cutter only can be used for fine finishing.
In current times, only cbn inserts are the right cutting tools for machining pumps. Especially CBN inserts enterprise Halnn superhard researched BN-K1 solid cbn inserts, can be used for both rough machining and interrupt turning condition. The advantages of Halnn BN-K1 solid cbn inserts as follows:
2. CBN Cutting Inserts Characteristics
| Insert Grade | Machining Type | Typical Application | Hardness(HV) | Binder |
| BN-K1 | Roughing | Alloy Cast Iron, Slurry Pump, Wear resistant castings | 3000-3250 | TIC |
| BN-S20 | Roughing, Semi-Finishing | HSS Rolls, Ball Screw, Wind Power Bearings | 2900-3100 | TIN |
3.Detailed Data of CBN Cutting Inserts
 | |||||||||
| Type | Dimension | Standard Chamfer | Grades | Corresponding tool holder | |||||
| L(mm) | φI.C(mm) | S(mm) | r(mm) | BN-K1 | BN-S20 | BN-S200 | |||
| CNMN120412 | 12.9 | 12.7 | 4.76 | 1.2 | S01020 S01025 S02020 S02030 S02530 S03020 | ● | ● | ● | CCLNR/L |
| CNMN120416 | 12.9 | 12.7 | 4.76 | 1.6 | ● | ● | ● | ||
| CNMN120704 | 12.9 | 12.7 | 7.94 | 0.4 | ● | ● | ● | ||
| CNMN120708 | 12.9 | 12.7 | 7.94 | 0.8 | ● | ● | ● | ||
| CNMN120712 | 12.9 | 12.7 | 7.94 | 1.2 | ● | ● | ● | ||
| CNMN120716 | 12.9 | 12.7 | 7.94 | 1.6 | ● | ● | ● | ||

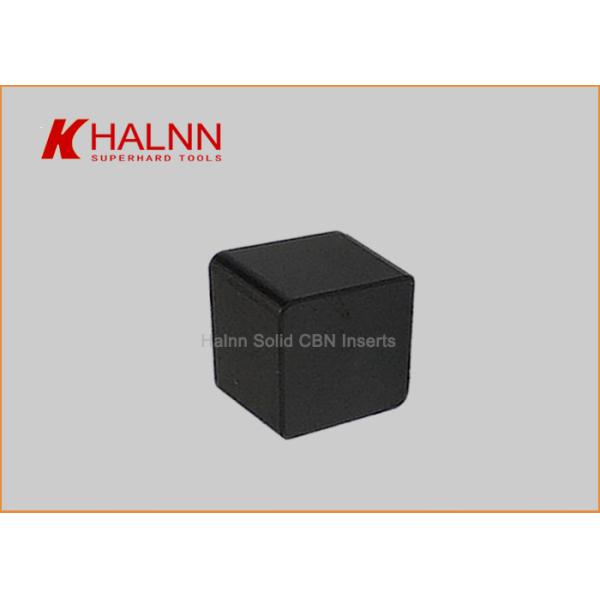

4.Pictures of Halnn Tools CBN Cutting Inserts
5.Application Case of Processing Slurry pump CBN Insert Continuous Hard Part Turning High Chromium Cast iron
Halnn BN-K1 solid cbn insert machining industry pump end Surface:
Machining Materials: High Chromium Cast Iron
Machining Part: End Surface
Insert Grade: BN-K1 CNMN120712-4S
Tool Holder: CCLNL2525M1207
Cutting Data: Vc=75m/min,Fr=0.1mm/r, ap=3.5mm
Machining Effect: When machining industry pump with large working allowance, it not only has excellent wear resistance and impact resistance, and the efficiency are improved several times.
6.FAQ
Q1. Do you have different quality for different kind of stone?
A1. Yes, according hardness of stone and stone’s feature, we have different typology respectively.
Q2. If we need technical support, can you offer us?
A2. Yes, we have an experienced team, offering our customers additional benefits with specific advice, by our product managerment staff, engineers and technicians.
|
|
