BNK30 CBN Inserts Machining FC200 Cast Iron Compressor Cylinder Normal Wear

1. BNK30 CBN Inserts

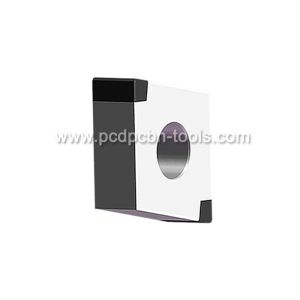

BNK30 Solid CBN Grade is researched specific for gray cast iron parts, it can be used for both roughing and finishing process. And also can be made with different type, solid cbn and brazed pcbn. Customers can choose different cbn type as their requirements.

2. BNK30 CBN Inserts CNMN and CNGA Models

Type	Dimension				Standard Chamfer	Grades	Corresponding tool holder
	L(mm)	φI.C(mm)	S(mm)	r(mm)		BNK30
CNMN090404	9	9.525	4.76	0.4	S01020 S01025 S02020 S02030 S02530 S03020	◎	CCLNR/L S25T-CCLNR/L
CNMN090408	9	9.525	4.76	0.8		◎
CNMN090412	9	9.525	4.76	1.2		◎
CNMN120404	12	12.7	4.76	0.4		●
CNMN120408	12	12.7	4.76	0.8		●
CNMN120412	2	12.7	4.76	1.2		●
CNMN120416	12	12.7	4.76	1.6		●
CNMN120704	12	12.7	7.94	0.4		●
CNMN120708	12	12.7	7.94	0.8		●
CNMN120712	12	12.7	7.94	1.2		●
CNMN120716	12	12.7	7.94	1.6		●

Type	Dimension					Standard Chamfer	Grades
	L(mm)	φI.C(mm)	S(mm)	φd(mm)	r(mm)		BNK30
CNGA120404-4S	12	12.7	4.76	5.16	0.4	S01015 S01020 S01025 S02020	●
CNGA120408-4S	12	12.7	4.76	5.16	0.8		●
CNGA120412-4S	12	12.7	4.76	5.16	1.2		●
CNGA120416-4S	12	12.7	4.76	5.16	1.6		●
CNGA160404-4S	16	15.875	4.76	5.16	0.4		◎
CNGA160408-4S	16	15.875	4.76	5.16	0.8		◎
CNGA160412-4S	16	15.875	4.76	5.16	1.2		◎

3.Typical Application ~ BNK30 CBN Inserts For Machining FC200 Cast Iron Compressor Cylinder

4. Typical Application ~ Compressor Components that can use with CBN Inserts
